Milling and boring heads

Password:

Extend your machine options
Doplňující text (parametry a ikonky skryté):

The ŠMT heads range includes a large facing head for machining depths up to 5 meters, microindexing heads and a CNC head for five-axis machining.
Obrázek - ilustrace:

Wide range of milling and boring heads enables you machining according to your requirements. More than 30 types of heads are available. Below are the most commonly used. For more information, contact our service department.

Ruční jednoosá hlava

Manual 1-axis head	IFVW 2C, 4C
Max. power:	55 / 73 kW
Max. torque:	2600 / 7000 Nm
Angle:	any

Ruční dvouosá hlava

Manual 2-axis head	IFVW 3C
Max. power:	55 kW
Max. torque:	2600 Nm
Angle:	any

Prodloužená přímá hlava

Extebsion milling head	IFVW 40
Max. power:	80 kW
Max. torque:	7 000 Nm
Lenght:	1 230 mm

Malá pravoúhlá hlava

Small right angle head	IFVW 111, 112, 113
Max. power:	25 kW
Max. torque:	600 Nm
Angle:	à 1° / à 2,5°
Lenght:	až 1 570 mm

Pravoúhlá hlava

Right angle head	IFVW 101, 102, 103, 104
Max. power:	25–85 kW
Max. torque:	1 000–4 000 Nm
Angle:	à 1° / à 2,5°

Univerzální 45° hlava

Universal 45-degree head	IFVW 203
Max. power:	30 kW
Max. torque:	1 500 Nm
Angle:	à 1° / à 2,5°

Univerzální 90° hlava

Universal 90-degree head	IFVW 206, 207, 208
Max. power:	25–73 kW
Max. torque:	1 000–3 500 Nm
Angle:	à 1° / à 2,5°

CNC univerzální hlava

CNC universal head	UFK 600, 1000, 2000, 2400
Max. power:	25–50 kW
Max. torque:	600-2400 Nm
Angle:	continous

Standardní vyvrtávací hlava

Standard facing head	IWD 125, 200, 320, 500, 700
Head diameter:	125–700 mm
Machining diameter:	up to 1 765 mm

Standard facing head

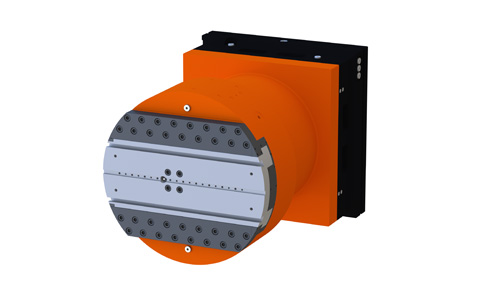

NC facing head	IWD 320NC, 500NC, 630NC, 800NC, 1000NC
Head diameter:	320–1000 mm
Machining diameter:	up to 2 000 mm

Velká vyvrtávací hlava

Large size facing head	IWD 1100, 2000
Head diameter:	1 100–2 000 mm
Machining diameter:	1 500–3 200 mm
Depth of machining:	up to 5 000 mm

Mikroindexovací jednoosá hlava

Micro index 1-axis head	IFWV 110 MI
Max. power:	25 kW
Max. torque:	600 Nm
Angle:	à 0,001°

Mikroindexovací dvouosá hlava

Micro index 2-axis head	IFVW 201 MI, 203 MI, 210 MI
Max. power:	25 – 40 kW
Max. torque:	800 – 1 500 Nm
Angle:	à 0,001°
